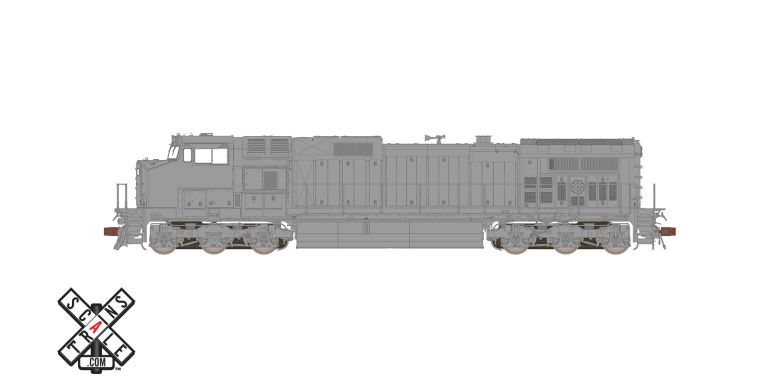

Rivet Counter HO Scale GE DASH 9, Undecorated
With railroad, road number, and era specific details, our Rivet Counter series DASH-9 is the definitive model of this popular GE locomotive. In our continuing effort to push the boundaries of realism in model railroading, the Rivet Counter DASH-9 features operating LED front, rear, and side walkway lights.
Undecorated models are unpainted and unassembled. Modeling skills and prototype knowledge are required to accurately build an undecorated Rivet Counter locomotive. Step-by-step assembly instructions are NOT included.
Run:
4
Announced:
Apr 1, 2021
Arrived:
Feb 21, 2022
See below for your price
In stock
SKU
RCHODASH9-UNDEC4
Road Number Specific ScaleTrains
Undecorated with ATSF Features
** In DC operation, both front ditch lights illuminate; rear ditch lights (if equipped) do not illuminate
*** Compatible with appropriately programmed ESU decoders while operating using DCC
Undecorated with ATSF Features
- Unpainted and unassembled
- Modeling skills and prototype knowledge required
- Step-by-step assembly instructions are NOT included
- Era: early 1994 to late 1990s
- Series 612-649, built 2/94 to 3-/94
- Operating LED front, rear, and side walkway lights*
- Operating LED front pilot face mounted ditch lights*
- Printed and operating LED lighted number boards*
- GE safety cab with “gull-wing” roof profile and three (3) side windows
- Short snowplow with open doors and grab irons
- 4-step stepwells with see through steps
- Walkway with front anticlimber
- GE “nub” pattern walkway tread
- Wide profile end handrails
- Front nose headlight
- Nose door with window
- One-piece nose top grab irons
- Standard battery box doors
- Detailed cab interior with desktop controls for both engineer and conductor, seats floor, and rear wall
- Tinted cab side windows
- Large Sinclair “ice skate” communication antenna and small Sinclair “ice skate” End of Train (EOT) telemetry antenna
- Prime Manufacturing PM5191 HVAC unit
- Early dynamic brake exhaust
- Early electrical cabinet with drop grab irons on rear
- Early curved engine cab profile
- Lost-wax brass Leslie RS-3L horn mounted on engine cab
- Early flanged exhaust stack housing
- “Bathtub” exhaust silencer
- 26 individually-applied etched metal see-through radiator intake and exhaust grilles on sides and top of radiator compartment
- Early radiator door grille all the same size
- Standard wheel type handbrake
- High-mounted rear sandfiller
- Early lifting lugs on ends of radiator wings
- Accurately profiled frame with separately applied plumbing and traction motor cabling
- Semi-scale coupler buffer equipped with durable metal semi-scale Type E knuckle couplers
- Separate air tanks with upper mounting brackets
- Salem Air Dryer
- Fuel tank mounted steel bell
- 5,000-galon fuel tank with vertical weld seam
- Dual fuel fills per side with rear fill “blanked”
- Round and vertical analog fuel gauges
- Late Hi-Ad trucks with non-cantilevered struts on all four sideframes
- Rotating axle bearing caps
- Late speed recorder
- Early, square handbrake chain bracket
- Spare coupler knuckle holders on truck sideframes
- Detail parts: wire grab irons, snowplow, spare knuckles, trainline hoses, 3-hose MU clusters, uncoupling levers, windshield wipers, mirrors, sunshades, air tanks, fuel tank mounted bell, brake wheel, exhaust stack and more
- Motor with 5-pole skew wound armature
- Dual flywheels
- All-wheel drive
- All-wheel electrical pick-up
- Directional LED headlights
- Printing and lettering legible under magnification
- Operates on Code 70, 83, and 100 rail
- Packaging safely stores model
- Minimum Radius: 18”
- Recommended Radius: 22”
- Series 650 to 699; ex-ATSF 650-699, built 8/94 to 9/94
- Era: 2006 to present
- Unpainted and unassembled
- Modeling skills and prototype knowledge required
- Step-by-step assembly instructions are NOT included
- Operating LED front, rear, and side walkway lights*
- Operating front pilot face mounted LED ditch lights*
- GE safety cab with “gull-wing” roof profile and three (3) side windows
- Short snowplow with open doors and grab irons
- 4-step stepwells with see through steps
- Walkway with front anticlimber
- GE “nub” pattern walkway tread
- Wide profile end handrails
- Front nose headlight
- Nose door with window
- Two-piece nose top grab irons
- Standard battery box doors
- Detailed cab interior with desktop controls for both engineer and conductor, seats floor, and rear wall
- Tinted cab side windows
- Large Sinclair “ice skate” communication antenna, small Sinclair “ice skate” End of Train (EOT) telemetry antenna and small “cone” antenna
- Prime Manufacturing PM5191 HVAC unit
- Early dynamic brake exhaust
- Early electrical cabinet with drop grab irons on rear
- Early curved engine cab profile
- Lost-wax brass Leslie RSL-3L-R horn mounted on engine cab
- Early flanged exhaust stack housing
- “Bathtub” exhaust silencer
- 26 individually-applied etched metal see-through radiator intake and exhaust grilles on sides and top of radiator compartment
- Early radiator door grille all the same size
- Standard wheel type handbrake
- High-mounted rear sandfiller
- Early lifting lugs on ends of radiator wings
- Accurately profiled frame with separately applied plumbing and traction motor cabling
- Semi-scale coupler buffer equipped with durable metal semi-scale Type E knuckle couplers
- Separate air tanks with upper mounting brackets
- No air dryer
- Fuel tank mounted steel bell
- 5,000-galon fuel tank with vertical weld seam
- Dual fuel fills per side with rear fill “blanked”
- Late Hi-Ad trucks with cantilever struts on right front and left rear sideframes
- Rotating axle bearing caps
- Late speed recorder
- Early, square handbrake chain bracket
- Spare coupler knuckle holders on rear pilot face
- Factory-applied detail parts: wire grab irons, snowplow, spare knuckles, trainline hoses, 3-hose MU clusters, uncoupling levers, windshield wipers, mirrors, sunshades, air tanks, fuel tank mounted bell, brake wheel, exhaust stack and more
- Motor with 5-pole skew wound armature
- Dual flywheels
- All-wheel drive
- All-wheel electrical pick-up
- Directional LED headlights
- Printing and lettering legible under magnification
- Operates on Code 70, 83, and 100 rail
- Packaging safely stores model
- Minimum Radius: 18”
- Recommended Radius: 22”
- Unpainted and unassembled
- Modeling skills and prototype knowledge required
- Step-by-step assembly instructions are NOT included
- Era: early 2000s to 2010s
- Series 8764 to 8888, built 1/95 to 4/95
- Road number 8774
- Operating LED front, rear, and side walkway lights*
- Operating front and rear deck mounted alternating LED ditch lights**
- Operating LED ground light on right side of locomotive*
- Printed and operating LED lighted number boards*
- GE spartan cab with cab-face condensation drain line and operating cab side windows
- Late flat-top low hood
- Roof top mounted Dayton-Phoenix 2807000 HVAC
- Tall snowplow with open doors and grab irons
- 4-step stepwells with see through steps
- Walkway with front and rear anticlimber
- GE “nub” pattern walkway tread
- Wide profile end handrails
- Battery box doors with barrel bolt latches
- Detailed cab interior with standard control stand for engineer, desktop for conductor, seats, floor, and rear wall
- Dual Motorola ASP-16 “Firecracker” antennas mounted on clean air cab
- Small Sinclair antenna mounted on top of clean air cab
- Late dynamic brake exhaust
- Late electrical cabinet with step on rear and Barrel Bolt Latches
- Early curved engine cab profile
- Lost-wax brass Nathan AirChime K5LAR24 horn with debris covers mounted on engine cab
- Early flanged exhaust stack housing
- “Bathtub” exhaust silencer
- 26 individually-applied etched metal see-through radiator intake and exhaust grilles on sides and top of radiator compartment
- Late radiator door grilles in alternating heights
- Cast handbrake wheel with release lever painted gray
- High-mounted rear sandfiller
- Early lifting lugs on ends of radiator wings
- Accurately profiled frame with separately applied plumbing and traction motor cabling
- Semi-scale coupler buffer equipped with durable metal semi-scale Type E knuckle couplers
- Separate air tanks with lower mounting brackets, connector pipe and connector pipe cover
- Dual Graham-White (Prime) air filters
- Graham-White (Salem) 975-100-Twin-Tower-Dryer
- Fuel tank mounted steel bell
- 5,000-galon fuel tank with vertical weld seam
- Single fuel fills per side
- Round and vertical analog fuel gauge
- Hi-Ad trucks with separately applied brake cylinders, air plumbing, and non-cantilevered struts on all four sideframes
- Rotating axle bearing caps
- Early, square handbrake chain bracket
- End of Train Device (EOTD) hanger bracket on left front truck sideframe
- Spare coupler knuckle holders on rear pilot face
- Detail parts: wire grab irons, snowplow, spare knuckles, trainline hoses, 3-hose MU clusters, uncoupling levers, windshield wipers, mirrors, sunshades, air tanks, fuel tank mounted bell, brake wheel, exhaust stack and more
- Motor with 5-pole skew wound armature
- Dual flywheels
- All-wheel drive
- All-wheel electrical pick-up
- Directional LED headlights
- Printing and lettering legible under magnification
- Operates on Code 70, 83, and 100 rail
- Packaging safely stores model
- Minimum Radius: 18”
- Recommended Radius: 22”
- Unpainted and unassembled
- Modeling skills and prototype knowledge required
- Step-by-step assembly instructions are NOT included
- Era: mid 2010’s to present
- Series 9564 to 9664; ex-SP 8100 to 8200, built 5/94 to 11/94
- Operating LED front, rear, and side walkway lights*
- Operating front deck mounted LED ditch lights**
- Tall snowplow with open doors and grab irons
- 5-step stepwells with see through steps
- Walkway with front anticlimber
- GE “nub” pattern walkway tread
- Retrofitted straight nose front grab irons
- Narrow profile end handrails
- Front nose headlight
- Nose door with window
- Two-piece nose top grab irons
- Standard battery box doors
- GE safety cab with three (3) side windows
- Detailed cab interior with desktop controls for both engineer and conductor, seats floor, and rear wall
- Tinted cab side windows
- Retrofitted with Jem Communications PTC antenna farm with Sinclair antennas
- Dayton-Phoenix Group model 2806220 HVAC unit
- Early dynamic brake exhaust
- Early electrical cabinet with drop grab irons on rear
- Early curved engine cab profile
- Lost-wax brass Nathan AirChime K3HAR2 horn with “shower caps” mounted on engine cab
- Early flanged exhaust stack housing
- Early radiator door grille all the same size
- “Bathtub” exhaust silencer
- 26 individually-applied etched metal see-through radiator intake and exhaust grilles on sides and top of radiator compartment
- Standard wheel type handbrake
- Low-mounted rear sandfiller
- Early lifting lugs on ends of radiator wings
- Accurately profiled frame with separately applied plumbing and traction motor cabling
- Semi-scale coupler buffer equipped with durable metal semi-scale Type E knuckle couplers
- Separate air tanks with upper mounting brackets
- Salem twin tower air dryer
- Fuel tank mounted steel bell
- 5,000-galon fuel tank with vertical weld seam
- Dual fuel fills per side with rear fill “blanked”
- Round and vertical analog fuel gauges
- Late Hi-Ad trucks with cantilever struts on all four sideframes
- Rotating axle bearing caps
- Early speed recorder
- Early, square handbrake chain bracket
- Spare coupler knuckle holders on rear pilot face
- Factory-applied detail parts: wire grab irons, snowplow, spare knuckles, trainline hoses, 3-hose MU clusters, uncoupling levers, windshield wipers, mirrors, sunshades, air tanks, fuel tank mounted bell, brake wheel, exhaust stack and more
- Motor with 5-pole skew wound armature
- Dual flywheels
- All-wheel drive
- All-wheel electrical pick-up
- Directional LED headlights
- Printing and lettering legible under magnification
- Paint colors match Tru-Color Paint color: (note TCP item numbers)
- Operates on Code 70, 83, and 100 rail
- Packaging safely stores model
- Minimum Radius: 18”
- Recommended Radius: 22”
- ESU-LokSound 5 DCC and Sound decoder with “Full Throttle”
- Two (2) cube-type speakers
- Accurate FDL-16 prime mover and auxiliary sounds, horn, bell, and more
- ESU-designed PowerPack with two (2) super capacitors***
- Operates on both DC and DCC layouts
- Operate on DC layouts
- DCC ready with 21-pin connector
** In DC operation, both front ditch lights illuminate; rear ditch lights (if equipped) do not illuminate
*** Compatible with appropriately programmed ESU decoders while operating using DCC
General Electric wrestled the title of top domestic locomotive builder from EMD during the late 1980s with their Dash-8 series. GE once again positioned themselves to shakeup the locomotive world yet again less than a decade later. Entering the 1990s, GE completely revamped their locomotive lineup by utilizing customer feedback, learning from experience gained from previous locomotive series, and improvements in technology.
A single C44-9W demonstrator unit, numbered 8601, made its debut in 1993 (and later became C&NW 8601). While similar at first glance to predecessor models like the C40-8 and C40-8W, the Dash-9 series featured a few notable physical differences. Built on a slightly longer platform that allowed for a massive 5,000 gallon fuel tank, Dash-9s also featured thicker radiator “wings” at the rear of the carbody. This is usually the quickest way to differentiate them from previous models.
Thanks to its long production span and customer options, small detail differences could be noted between various customer orders. This includes changes with HVAC system vendors (the large “A/C” box behind the cab on the conductors side), engine cab profile, radiator lifting lugs, hood end, trucks, fuel tank, stepwells, operator’s cab, and even handrail profiles.
The C44-9W proved to be extremely popular over its production span with over 3,500 locomotives being sold new to ATSF, BC Rail, BNSF, CN, C&NW, NS (including 100 spartan cab equipped versions, nicknamed “Top Hats”), QNS&L, SP, and UP.
NS was an important customer with over 1,000 Dash-9s on the roster. They preferred customized models in the form of 100 spartan-cab equipped, 4,000hp C40-9s (nicknamed “Top Hats”) and numerous examples of safety cab-equipped versions rated at 4,000hp, and designated as C40-9Ws. All C40-9/Ws would eventually be uprated to 4,400hp with their designations changed accordingly.
Over the years, the Dash-9s could be found in a variety of assignments. Santa Fe’s C44-9Ws were delivered in the famed red and silver “Superfleet” scheme and could be found hurtling across the southwest with hot piggyback trailer and container trains in tow.
Southern Pacific’s units were some of the first new six-axle power on the beleaguered railroad’s roster in more than a decade. They were pressed into a variety of assignments ranging from hot intermodal trains to coal and iron ore drags.
Chicago & North Western’s units made their debut in flashy “lightning stripe” livery and handled numerous assignments during their brief tenure before being absorbed by Union Pacific
The Dash-9 series remained in production until the early 2000s when it was superseded by GE’s “Evolution Series” ES40/44-series models. Age has begun to catch up with the earliest C44-9W and related models so some railroads are storing and/or rebuilding these veteran units. NS’s oldest units, the spartan-cab C40-9s, are being rebuilt with the latest GE safety cab for increased crew comfort and safety plus AC-traction for increased performance.
Originally built in the early 1990s, some of BNSF’s former Santa Fe fleet are also in the process of being rebuilt with AC-traction to extend their service lives and improve their performance.
Built over a long timeframe, and proving to be a solid, upgradeable platform, the C44-9W family of locomotives including rebuilds is sure to remain a fixture on today’s railroads for the foreseeable future.
A single C44-9W demonstrator unit, numbered 8601, made its debut in 1993 (and later became C&NW 8601). While similar at first glance to predecessor models like the C40-8 and C40-8W, the Dash-9 series featured a few notable physical differences. Built on a slightly longer platform that allowed for a massive 5,000 gallon fuel tank, Dash-9s also featured thicker radiator “wings” at the rear of the carbody. This is usually the quickest way to differentiate them from previous models.
Thanks to its long production span and customer options, small detail differences could be noted between various customer orders. This includes changes with HVAC system vendors (the large “A/C” box behind the cab on the conductors side), engine cab profile, radiator lifting lugs, hood end, trucks, fuel tank, stepwells, operator’s cab, and even handrail profiles.
The C44-9W proved to be extremely popular over its production span with over 3,500 locomotives being sold new to ATSF, BC Rail, BNSF, CN, C&NW, NS (including 100 spartan cab equipped versions, nicknamed “Top Hats”), QNS&L, SP, and UP.
NS was an important customer with over 1,000 Dash-9s on the roster. They preferred customized models in the form of 100 spartan-cab equipped, 4,000hp C40-9s (nicknamed “Top Hats”) and numerous examples of safety cab-equipped versions rated at 4,000hp, and designated as C40-9Ws. All C40-9/Ws would eventually be uprated to 4,400hp with their designations changed accordingly.
Over the years, the Dash-9s could be found in a variety of assignments. Santa Fe’s C44-9Ws were delivered in the famed red and silver “Superfleet” scheme and could be found hurtling across the southwest with hot piggyback trailer and container trains in tow.
Southern Pacific’s units were some of the first new six-axle power on the beleaguered railroad’s roster in more than a decade. They were pressed into a variety of assignments ranging from hot intermodal trains to coal and iron ore drags.
Chicago & North Western’s units made their debut in flashy “lightning stripe” livery and handled numerous assignments during their brief tenure before being absorbed by Union Pacific
The Dash-9 series remained in production until the early 2000s when it was superseded by GE’s “Evolution Series” ES40/44-series models. Age has begun to catch up with the earliest C44-9W and related models so some railroads are storing and/or rebuilding these veteran units. NS’s oldest units, the spartan-cab C40-9s, are being rebuilt with the latest GE safety cab for increased crew comfort and safety plus AC-traction for increased performance.
Originally built in the early 1990s, some of BNSF’s former Santa Fe fleet are also in the process of being rebuilt with AC-traction to extend their service lives and improve their performance.
Built over a long timeframe, and proving to be a solid, upgradeable platform, the C44-9W family of locomotives including rebuilds is sure to remain a fixture on today’s railroads for the foreseeable future.
Warranty Registration
Downloadable Documentation
Downloadable ESUX Sound & Control Files
