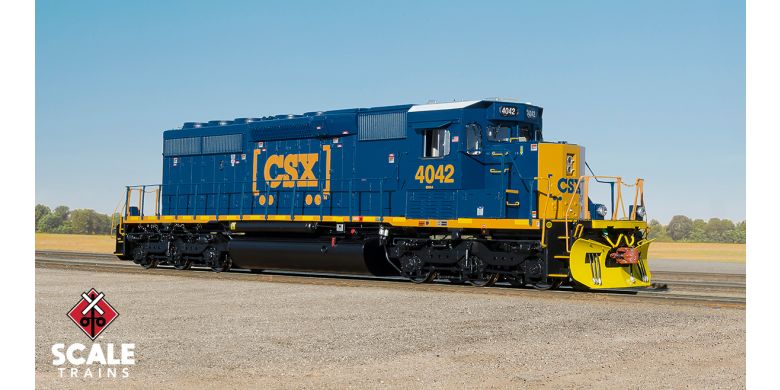

Rivet Counter HO Scale EMD SD40-3, CSX/YN3 Boxcar Logo

Grouped product items
Item Number	Road Number	Control & Sound Options	Our Price	Availability	Quantity
SXT32873	4042	DCC & Sound Equipped	$254.99	Sold Out
SXT32874	4042	DC/DCC Ready	$164.99	Sold Out

ADDITIONAL PHOTOS

PRODUCT DETAILS

Era: 2013 to present
Series 4040-4049, rebuilt into SD40-3s in 2013
Road number 4042
- Rebuilt from CRR 8132
- Unique data label and data label placement
- “Post-’80” extended-range dynamic brake housing with exhaust silencer without batten strip
- Yellow high visibility front snow plow and anti-climber
Operating Front and rear deck mounted alternating LED ditch lights*
NRE-built replacement low short hood, cab, and sub-base
High front headlight
CSX/NS-style late pilot plow without MU hose doors
CSX designed anticlimbers
Sill mounted tow chain
Late “fixed” rear drop step
"Tall" stepwells with see-through steps
Rectangle walkway lights (non-operating)
Tall mirror mounted fore of cab side window on both sides of cab
Standard EMD sunshades and long sunshade tracks
Nathan AirChime K3LA Horn relocated to the long hood roof
Large Sinclair Excalibur “ice skate” antenna (communications), Small thin dome antenna and STI-CO PTC Dual Track Antenna System
Late welded ECAFB
Late inertial air intake grilles with top and bottom drip rail
Corrugated radiator intake grilles
See-through standard 48” radiator fan housings with fan blades visible inside
Angled radiator fan grab iron
Straight uncoupling levers with loop handles front and rear and two inner and two outer brackets
Handrail set with anticlimber front and outward-facing rear-end rail mounting brackets and chain
3-hose MU hose clusters with silver gladhands
Pilot face-mounted MU receptacle
Spare knuckle holders on rear pilot face
Dummy MU receptacle pilot face dummy MU receptacle
Notched pilot faces with high angled lifting slots
Short jacking pads (late)
Forward engineer’s side sidesill notch
Sill-mount EFCO
Frame-mounted electronic bell
Prime air filter (can style)
Graham-White 994-500 air dryer
4,000-gallon fuel tank with fuel fillers, vertical gauge, blanked round gauge in tank sides, electronic gauge and vertical breather pipe
Detailed HT-C trucks with rotating Timken bearing caps, late center axle snubbers, sanding lines and brackets, and D-77 traction motor and air duct details

Rivet Counter SD40-2 Locomotives Also Feature

Fully assembled
Multiple road numbers
Printed and LED lighted number boards
Dimensionally accurate truck centers
Scale sectioned treadplate detail on the walkways
Underbody frame rail with separate plumbing and traction motor cables
Accurate hood door and long hood detail
Accurately profiled dynamic brake housings
See-through dynamic brake intakes with resistor grid detail
Detailed cab interior with separate floor, rear wall, seats, and standard AAR control stand
Sliding cab windows
Factory-applied wire grab irons, wire lift rings, windshield wipers, snowplows, horns, coupler cut levers, trainline hoses with silver gladhands, sand hatch covers, and much more
Semi-scale coupler buffer equipped with ScaleTrains.com durable metal semi-scale E Type knuckle couplers
Directional LED headlights
All-wheel drive
All-wheel electrical pick-up
Motor with 5-pole skew wound armature
Dual flywheels
Printing and lettering legible even under magnification
Color-matched to Tru-Color Paint colors whenever possible
Operates on Code 70, 83 and 100 rail
Packaging safely stores model
Minimum radius: 18”
Recommended radius: 22”

DCC & sound equipped locomotives also feature:

ESU LokSound 5 DCC & Sound decoder with “Full Throttle” feature
Dual cube-type speakers
EMD 16 Cylinder 645E3 prime mover
ESU designed “PowerPack” with two super capacitors***
Operates on both DC and DCC layouts

DC/DCC & sound ready locomotives also feature:

Operable using a DC power pack
DCC-ready with 21-pin connector

* These features only function with an ESU DCC decoder installed while operating in DCC

** During DC operation, class lights illuminate in white. Access to other colors and the ability to change colors requires an ESU DCC decoder while operating in DCC

***“PowerPack” feature only compatible with ESU decoders while operating on a DCC layout

PRODUCT VIDEOS

PROTOTYPE HISTORY

In January 1972, Electro-Motive Division (EMD) of General Motors would build the first production models of a locomotive design that would prove to be legendary: the SD40-2. The flagship of the “Dash-2” series of 1972, the SD40-2 would build upon the lessons learned from its predecessor, the SD40. While the sixteen-cylinder 645E3 turbocharged prime mover remained the same from its SD40 cousin, the SD40-2 boasted a modular, solid-state electrical system, which featured removable “cards” in place of troublesome relays in its high-voltage cabinet, greatly simplifying electrical troubleshooting and repairs.

Externally, the biggest change was the use of the new HT-C three-axle truck in place of the Flexi-coil C of the SD40. The new truck promised greater adhesion, and was longer than the Flexi-coil C, necessitating an increase of the length of the SD40-2s frame to an overall length of 68’, 10” over the couplers. This also had the effect of giving the SD40-2 its characteristic long walkway “porches” at each end. Other small external improvements, such as longer battery box compartments, rear overhang on the cab roof, and drip rail over the front cab door, added to the list of external differences between it and the SD40.

Domestic production of the SD40-2 continued until July 1984 making it one of EMD’s most popular locomotives of all time. Many remain in service today, both with original owners as well as secondhand operators. Within the last five years, Norfolk Southern and CSX have rebuilt hundreds of SD40-2s to extend their operating life. This will ensure this venerable locomotive’s presence on U.S. rails for decades to come.

PRODUCT SUPPORT

Warranty Registration

Register your product

Downloadable Documentation

SD40-2-LOCOMOTIVE-MANUAL-web_4.pdf
